Accessories

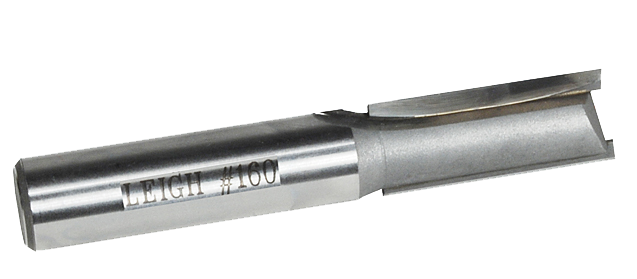

The Leigh B975 comes with a 1/2" straight bit, Leigh bit no.160. The two spiral upcut bits pictured below may also be used on the B975. Spiral upcut bits generally rout cleaner and faster than 2-flute straight bits.

BOX JOINT BIT SELECTION
Leigh Bits A
Bit Diameter
B**
Max. Cutting Depth
C
Shank Diameter
D
Shank Length
E
Overall Length
Use with Collet/Collet reducer Use with
eBush*
Price

160*
1/2" 1-1/4" 1/2" 1-3/4" 3-1/8" 1/2" Collet e10

$31.00


180**
1/2" 1-1/2" 1/2" 2" 3-1/2" 1/2" Collet e10

$62.00


180C**
1/2" 1-5/8" 1/2" 1-7/8" 3-1/2" 1/2" Collet e10

$99.00


* The e10 eBush and Bit 160 are included with the B975
** Note that the dimension B is not the exact cutting depth of the carbide. All Leigh bits have slightly more carbide cutting depth than is required.
** Spiral upcut bits rout cleaner & faster, leaving a smoother finish.


Note: The B975 Jig may require a router fitted with a guide bushing adapter. Click here to use the Guide Bushing Adaptor Selector.
